PMM0402

DLMS - Modbus Protocol Gateway

KEY FEATURES

  • Supports up to 10 meters with single converter .
  • Tested with all major meter brands such as: Iskraemeco, Landis+Gyr, EMH meter, Actaris SL7000,Elster A1700, Elster A1500, KAMSTRUP, DPEE, ...etc
  • Supports Modbus RTU/TCP
  • Effortless configuration via web-based server
  • Embedded traffic monitoring as well as diagnostic information for easy trouble shooting
  • MicroSD card for configuration backup and duplication for event logs
  • Status monitoring and fault protection for easy maintenance
  • Redundant dual power inputs (DC-DC) or (AC-DC)
  • Operating temperature: -40 to 75°C (-40 to 167°F)
  • EMI, EMS, EMC and shock protected
  • Serial port with power surge 2kV isolation protection
  • Security features based on IEC 62443
8 in stock
Base Price: 363.5 $
Contact Sales

DESCRIPTION

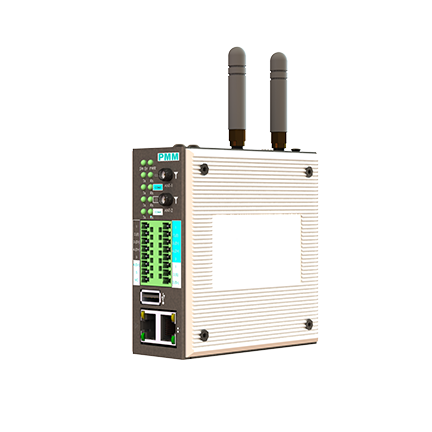

PMM0402 is a highly configurable industrial ethernet gateway device which is capable of reading data from any device containing DLMS protocol like energy meters, and converting it to RTU/TCP Modbus protocol. PMM0402 provides the flexibility needed to fulfill the various conditions that arise with field devices that use different communication protocols to connect to the SCADA system.

PMM0402 gateways support a system log function that record events; users can easily review log data remotely through a web interface. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies the SCADA system. When a device gets disconnected or does not respond, in such case the SCADA system gets the status of each end device and then issues alarms to notify operators.

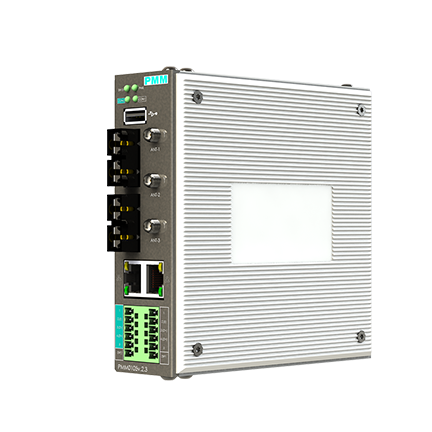

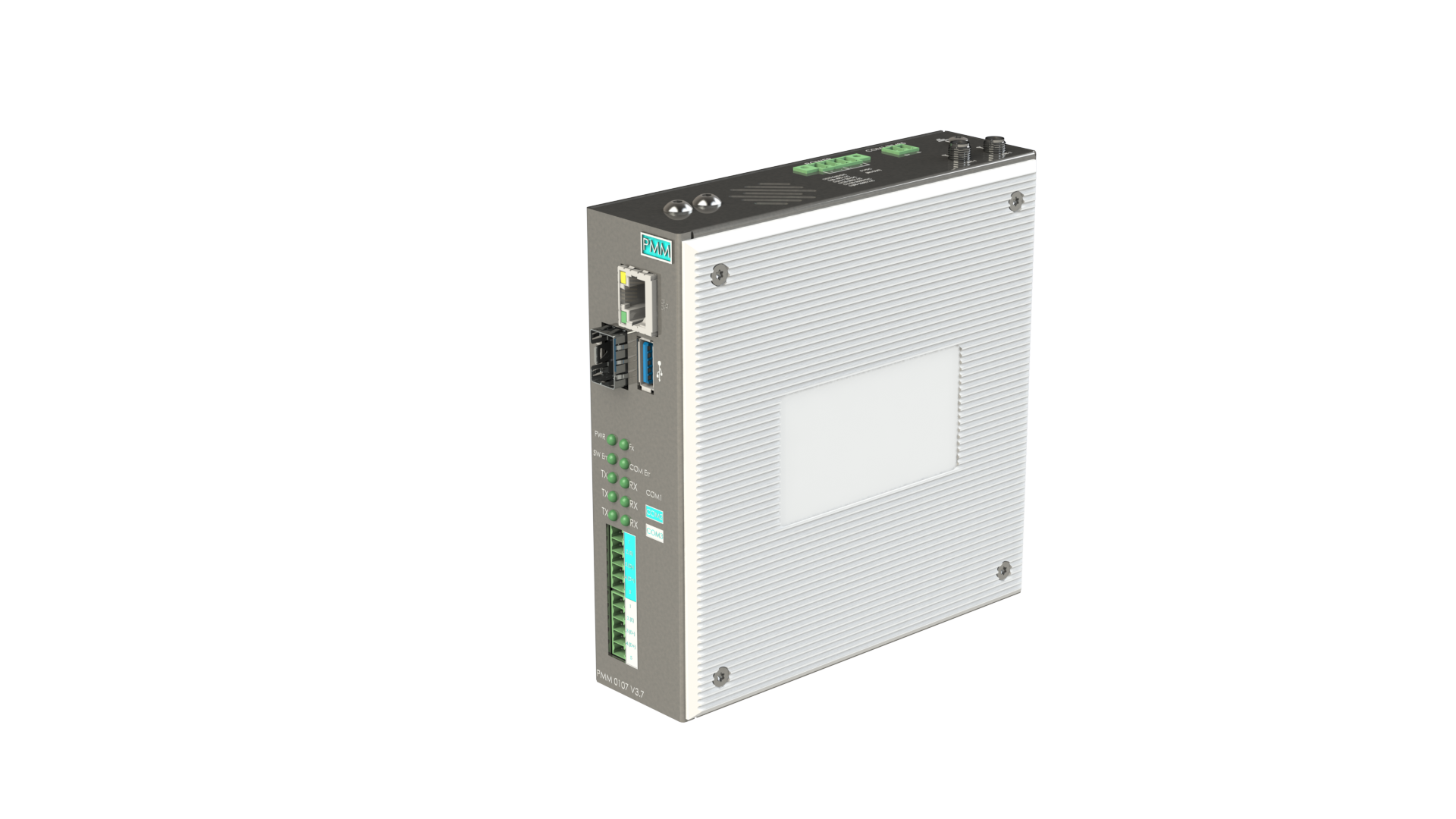

PMM0402 can be contained within multiple hardware chassis which are designed with a wide range of highly configurable communication ports needed in the field. All hardware chassis are rugged, powerful, reliable, fanless and cover a wide range of power supply options that offer a high level of performance and low level of power consumption. The system is especially designed to meet all power substation requirements. Furthermore, it covers all field standards of power, reliability, easy configuration and long-lasting life.
